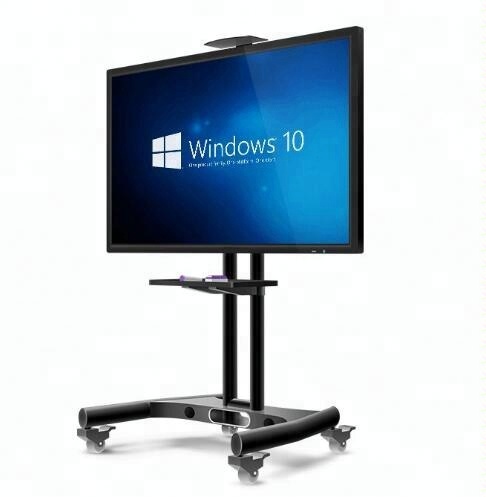

65 Inch Android Windows Touch Floor Standing Lcd Interactive Whiteboard Advertising Display
- Place of Origin:
-
Guangdong, China (Mainland)
- Brand Name:
-
SYTON
- Model Number:
-
SYT
- Type:
-
TFT
- Application:
-
Indoor
- Viewing Angle:
-
178 /178 (H/V)
- Pixel Pitch:
-
0.4845mm
- Contrast Ratio:
-
4000:1
- Brightness:
-
500cd/m2
- Response Time:
-
5ms
- Input Voltage:
-
AC110~240V 50/60Hz
- Warranty:
-
1 Year, 1 Year
- After-sales Service Provided:
-
Video technical support, Free spare parts, Online support
- Product name:
-
65 inch education equipment
- Certificate:
-
CE/CCC/FCC/ROHS/ISO9001
- Display Scale:
-
16:9
- Working life:
-
more than 100000 hours
- Display Area:
-
697*392mm
- OEM/ODM:
-
acceptable
- Installation:
-
Wall Mountable
- Version:
-
stand-alone/network
- name:
-
metal frame floor standing lcd
- 3000 Piece/Pieces per Month Lcd Interactive Whiteboard
- Packaging Details
- Port
- Guangzhou, Shenzhen
- Picture Example:
-
- Lead Time :
-
Quantity(Pieces) 1 – 20 >20 Est. Time(days) 7 To be negotiated
65 Inch Android Windows Touch Metal Frame Floor Standing Lcd Advertising Display
Features
1. Safety, energy saving, metal shell, no sharp edges and corners; low power consumption, low radiation, energy efficiency.
2. Anti-riot and anti glare tempered glass, Interference of ambient light effectively.
3. Compatible with Android and PC dual system touch operation, can access the Internet without PC,Play multimedia files,PPT demo etc,can install APK yourself;
4. Wall hanging bracket or Moving Support;
5. Using front multi function button and computer USB interface for copy files easier
65 Inch Android Touch Metal Frame Floor Standing Lcd Advertising Display:
Windows system
|
Processor |
Intel Core i3-3217U @ 1.80GHz |
|
GPU: |
Intel HD4000 Graphics |
|
Chipset |
Intel Chipset HM65 |
|
Memory |
DDR3 4GB ,Support up to 8GB |
|
Ethernet |
Realtek GBE RJ45,8111E |
|
Audio |
Realtek HD Audio,Support Line-in,Line-out,Mic-in,Spdif,Speaker |
|
Display |
VGA1,LVDS. |
|
Storage |
128G SSD |
|
Power Supply |
DC 12V Power Supply, or ATX Power Supply |
|
CPU_Fan |
Thin Cool Fan |
|
Size |
Mini-ITX |
|
Ports: |
4*USB2.0 ,1*VGA, 1*HDMI, 1*RJ-45, 1*DC, 1*MIC-IN, 1* LINE-OUT |
|
Built-in I/O |
1x24bit LVDS,4xUSB,5xCom,2xFan_Slot, SIM Card slot,Spdif,VGA header(12P standard) |
|
Expansion |
2xMini-PCIE , Support Wifi,3G,Bluetooth,GPS |
|
Operating Temperature |
-10℃ to 60℃ |
|
Storage Temperature |
-40℃ to 80℃ |
|
Operating Humidity |
0-95% |
|
Watchdog |
Option |
|
H/W Monitoring |
Monitor the state of voltage,temperature and rotational speed of the fan |
IR touch screen
|
Multi-touch Frame |
Touch technology |
Infrared multi touch technology |
|
Touch model |
6 touch points |
|
|
Induction object |
Finger, pen, any opaque objects |
|
|
Size of induction |
Greater than or equal to 5 mm in diameter |
|
|
Resolution |
8192*8192 |
|
|
Response time |
First point 25ms consecutive points 8ms |
|
|
Cursor speed |
≥200dots/second |
|
|
Glass Thickness |
4mm Normal or Anti-glare tempered glass |
|
|
Operating voltage |
DC 4.6V ~ DC 5V by USB |
|
|
Consumption current |
<1W, current ≤ 100mA |
|
|
Touch Activation Force |
No pressure needed |
|
|
Service life |
>6 million times single spot touch |
|
|
Transferring rate |
12m/s |
|
|
Positioning accurac |
≤0.1mm |
|
|
Droop resistant |
Yes, prevent due to long time work performance degradation |
