Products
75 Inch LCD Display Interactive Whiteboard with OPS PC Built-in , interactive table for restaurant
- Place of Origin:
-
Guangdong, China (Mainland)
- Brand Name:
-
SYTON
- Model Number:
-
SYT
- Type:
-
TFT
- Application:
-
Indoor
- Viewing Angle:
-
178/178(min.)
- Pixel Pitch:
-
0.4845*0.4845mm
- Contrast Ratio:
-
2000:1
- Brightness:
-
500cd/㎡
- Response Time:
-
5ms
- Input Voltage:
-
AC 110V~240V, 110-240V, 50/60HZ
- Warranty:
-
1 Year, 1 year after delivery
- After-sales Service Provided:
-
Video technical support, Free spare parts, Field installation, commissioning and training, Online support
- Product name:
-
interactive table for restaurant
- Display Scale:
-
9:16
- Life Span:
-
more than 50000hours
- Trade Terms:
-
FOB, CIF, EXW, etc.
- OEM/ODM:
-
acceptable
- Description:
-
interactive table for restaurant
- Power supply:
-
16w
- built-in loudspeaker:
-
2*8Ω-5w
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 1110X110X60 cm
- Single gross weight:
- 100.0 kg
- Picture Example:
-
- Lead Time :
-
Quantity(Set) 1 – 1 >1 Est. Time(days) 5 To be negotiated
75 Inch LCD Display Interactive Whiteboard with OPS PC Built-in , interactive table for restaurant
75 Inch LCD Display Interactive Whiteboard with OPS PC Built-in , interactive table for restaurant

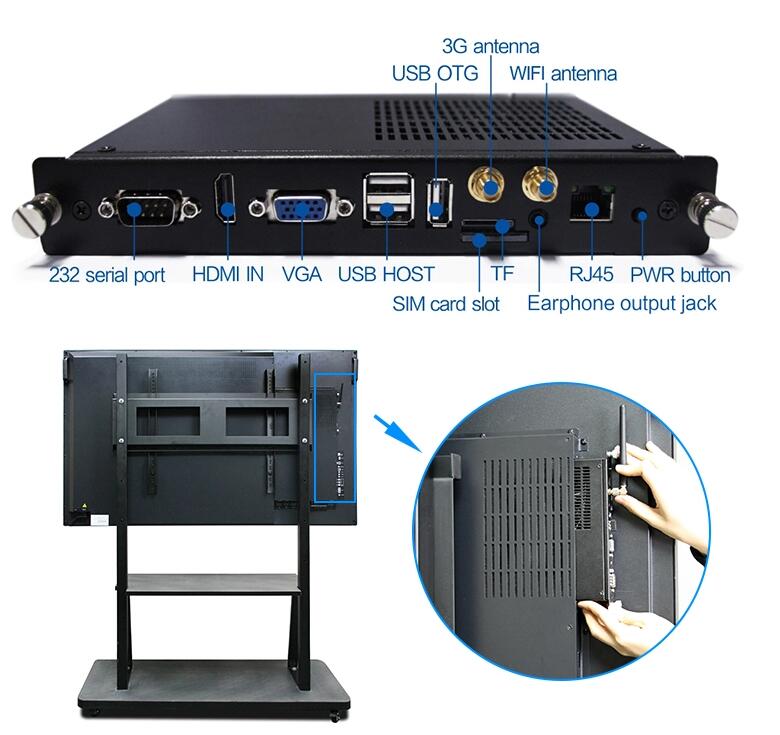

Windows system
|
Processor |
Intel Core i3-3217U @ 1.80GHz |
|
GPU: |
Intel HD4000 Graphics |
|
Chipset |
Intel Chipset HM65 |
|
Memory |
DDR3 4GB ,Support up to 8GB |
|
Ethernet |
Realtek GBE RJ45,8111E |
|
Audio |
Realtek HD Audio,Support Line-in,Line-out,Mic-in,Spdif,Speaker |
|
Display |
VGA1,LVDS. |
|
Storage |
128G SSD |
|
Power Supply |
DC 12V Power Supply, or ATX Power Supply |
|
CPU_Fan |
Thin Cool Fan |
|
Size |
Mini-ITX |
|
Ports: |
4*USB2.0 ,1*VGA, 1*HDMI, 1*RJ-45, 1*DC, 1*MIC-IN, 1* LINE-OUT |
|
Built-in I/O |
1x24bit LVDS,4xUSB,5xCom,2xFan_Slot, SIM Card slot,Spdif,VGA header(12P standard) |
|
Expansion |
2xMini-PCIE , Support Wifi,3G,Bluetooth,GPS |
|
Operating Temperature |
-10℃ to 60℃ |
|
Storage Temperature |
-40℃ to 80℃ |
|
Operating Humidity |
0-95% |
|
Watchdog |
Option |
|
H/W Monitoring |
Monitor the state of voltage,temperature and rotational speed of the fan |
IR touch screen
|
Multi-touch Frame |
Touch technology |
Infrared multi touch technology |
|
Touch model |
6 touch points |
|
|
Induction object |
Finger, pen, any opaque objects |
|
|
Size of induction |
Greater than or equal to 5 mm in diameter |
|
|
Resolution |
8192*8192 |
|
|
Response time |
First point 25ms consecutive points 8ms |
|
|
Cursor speed |
≥200dots/second |
|
|
Glass Thickness |
4mm Normal or Anti-glare tempered glass |
|
|
Operating voltage |
DC 4.6V ~ DC 5V by USB |
|
|
Consumption current |
<1W, current ≤ 100mA |
|
|
Touch Activation Force |
No pressure needed |
|
|
Service life |
>6 million times single spot touch |
|
|
Transferring rate |
12m/s |
|
|
Positioning accurac |
≤0.1mm |
|
|
Droop resistant |
Yes, prevent due to long time work performance degradation |
1.Puiblic Places: Subway, Airport, Bookshop, Exhibition hall, Gymnasium, Museum, Conference center
2. Entertainment Places: Movie theatre, Fitness center, Vacational village, KTV bar, Internet bar, Beauty salon.
